Flush glaze roof lights

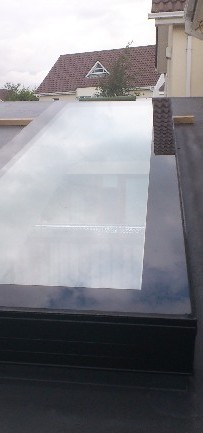

The flush roof light offers sky only views and can be tailored to meet many shapes and sizes, it can even be butted up against one or more walls.

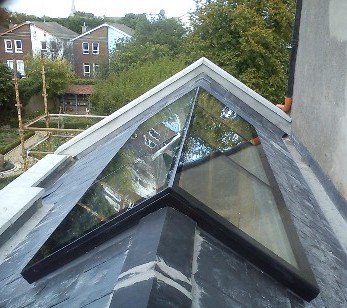

The roof light has an extremely low profile system which is based on advanced glass bonding technology, the glass being structurally bonded and triple sealed making it an ideal roof light for flat roof applications on a pitch of only 3-5 degrees also for pitched roofs up to 70 degrees. Water ponding and condensation risks are kept to a minimum by the elimination of internal flashings and external metal framework. ** Also available is the Triple glazed roof light with a Centre Pane U-Value as low as 0.7W/m² k **
Get a Quote- Specifications (for Single piece units only, larger spans can be achieved using mullions) Recommended minimum pitch: 3-5º Double glazed guideline weight 35kg per M² Triple glazed guideline weight 50kg per M² Circular Roof lights Maximum External upstand/Width: 2000mm
- Glass Specification: 28mm Double Glazed Unit – (with black painted frit, to suit up stand depth) 6mm Toughened Outer Pane, 16mm Argon filled cavity with “warm-edge” spacer bar technology, 6mm Toughened Low E Inner Pane. Approximate Centre Pane u Value: 1.1
- Triple glazed Glass Spec 50mm Triple Glazed Unit - (with black painted frit, to suit up stand depth) 6mm Toughened Outer Pane, 16mm Argon filled cavity with “warm-edge” spacer bar technology,6mm Toughened Low E middle pane, 16mm Argon filled cavity with “warmedge” spacer bar technology, 6mm Toughened Low E Inner Pane. Approximate Centre Pane u Value: 0.7 The Roof light can be divided into multiple sections that are bonded together giving a flush co-planar finish.
